NRC
QUICKSWAP
6,000 LBS
BASIC WEIGHT
UNDERLIFT RATING
35,000 LBS
TOW RATING
80,000 LBS

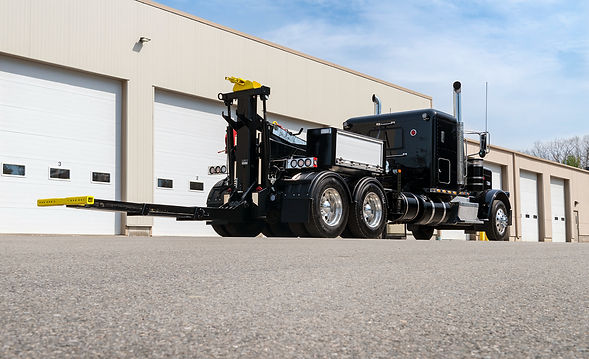

QUICKSWAP
The Quickswap embodies efficiency in all aspects, delivering substantial savings on fuel and maintenance expenses while maximizing potential and boosting profitability.
With a proven track record of durability and reliability, the Quickswap excels without the burden of unnecessary weight. Its robust components and lightweight design establish it as a reliable workhorse, capable of enduring demanding tasks. By incorporating a winch, your Quickswap can serve as a dependable recovery unit, providing valuable support whenever needed. An additional advantage is the peace of mind knowing that weight restrictions won’t be a concern.
Leverage the benefits of the Quickswap’s detachable design to push boundaries during peak seasons and adapt seamlessly during slower periods. This unique feature allows you to optimize performance by effortlessly adding or removing attachments as required, ensuring unparalleled versatility and adaptability.
-
Standard Equipment3-stage HD Underlift Towing capacity: 80,000 lbs Underlift lifting capacity: 35,000 lbs Detachable from tractor in minutes Dual cylinders for underlift elevation Hydraulic underlift extension Hydraulic tilt boom Hydraulic fold Removable front stands Manual controls Safety chain pockets Federal standard #108 compliant light group Tie-down chains Front receiver (permanently mounted on chassis) Aluminum fenders Fork storage and holders Epoxy primer
-
Optional Equipment3-stage HD/SHD Underlift 4-stage SHD Underlif Heavy duty tire lift 20,000 lbs planetary winch 25,000 lbs planetary winch 5/8″ x 200′ wire rope Recovery Roller guide 2/6/10-Button Remote control Large tunnel tool box (28″ to 72″) Composite battery box on top of tunnel Composite light pylon 2 work lights under the bumper Hydraulic tank Stabilizer grip Additional towing attachments Stainless steel package 72″ toolbox w/ roll-up doors Enclosed manual controls Second front receiver Tow lights (corded and wireless) Installation Custom paint
-
Minimum Frame RequirementsFront Axle : Minimum 12,000 lbs capacity Rear Axle : Minimum 40,000 lbs capacity Minimum wheelbase : 250″ HD Underlift Minimum wheelbase : 275″ SHD Underlift Minimum frame RBM: 3,250,000 in.lbs per rail Maximum frame rails width overall: 34 1/2”
-
